| 雙動式T/L/拉環手柄快鎖插銷 |
| MS17988, MS17989, MS17990 |
 |
推/拉啟動

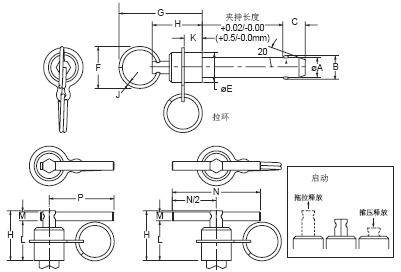

L形手柄 T型手柄 |
|
- 雙動式，推或拉均可操作
- 通體不銹鋼結構使產品的抗腐蝕性更強
- 軸桿材料為高強度17-4PH熱處理不銹鋼
- 適用于需要快速插入和拔出的場合
- 根據客戶需要, 也可提供四球鎖緊的結構
- 含有孔及開口環，便于與系索連接
- 符合或超過NASM 23460規格標準
- 如有要求, 可選擇推出式設計
|
| 雙動式插銷規格 - 英制 |
常規
插銷
直徑 |
插銷直徑A |
B
+/-0.005 |
C
最大 |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
最小 |
最大 |
最小 |
最大 |
最小 |
最大 |
最小 |
最大 |
3/16 |
0.1870 |
0.1885 |
0.220 |
0.410 |
0.360 |
0.450 |
1.000 |
1.125 |
1.945 |
1.030 |
0.080 |
0.415 |
0.480 |
0.780 |
0.109 |
1.500 |
1.300 |
1/4 |
0.2470 |
0.2485 |
0.289 |
0.410 |
0.360 |
0.450 |
1.000 |
1.125 |
1.945 |
1.030 |
0.080 |
0.415 |
0.480 |
0.780 |
0.109 |
1.5000 |
1.300 |
5/16 |
0.3095 |
0.3110 |
0.375 |
0.440 |
0.390 |
0.505 |
1.000 |
1.125 |
1.945 |
1.030 |
0.080 |
0.415 |
0.480 |
0.780 |
0.109 |
1.5000 |
1.300 |
3/8 |
0.3720 |
0.3735 |
0.440 |
0.510 |
0.510 |
0.630 |
1.000 |
1.125 |
2.025 |
1.090 |
0.080 |
0.445 |
0.540 |
0.830 |
0.156 |
2.000 |
1.500 |
7/16 |
0.4345 |
0.4360 |
0.509 |
0.510 |
0.510 |
0.630 |
1.000 |
1.125 |
2.025 |
1.090 |
0.080 |
0.445 |
0.540 |
0.830 |
0.156 |
2.000 |
1.500 |
1/2 |
0.4970 |
0.4985 |
0.594 |
0.590 |
0.640 |
0.755 |
1.000 |
1.125 |
2.200 |
1.270 |
0.080 |
0.445 |
0.540 |
0.880 |
0.218 |
2.250 |
1.655 |
9/16 |
0.5595 |
0.5610 |
0.666 |
0.660 |
0.640 |
0.755 |
1.000 |
1.125 |
2.200 |
1.270 |
0.080 |
0.445 |
0.540 |
0.880 |
0.218 |
2.250 |
1.655 |
5/8 |
0.6220 |
0.6235 |
0.750 |
0.750 |
0.805 |
0.870 |
1.312 |
1.500 |
2.690 |
1.465 |
0.120 |
0.510 |
0.575 |
1.000 |
0.250 |
2.500 |
1.810 |
3/4 |
0.7470 |
0.7485 |
0.887 |
0.790 |
0.890 |
0.960 |
1.312 |
1.500 |
2.690 |
1.465 |
0.120 |
0.530 |
0.595 |
1.000 |
0.250 |
2.500 |
1.810 |
7/8 |
0.8720 |
0.8735 |
1.046 |
0.950 |
1.070 |
1.150 |
1.312 |
1.500 |
2.860 |
1.640 |
0.120 |
0.665 |
0.730 |
1.180 |
0.250 |
2.875 |
2.250 |
1 |
0.9970 |
0.9985 |
1.219 |
1.110 |
1.200 |
1.280 |
1.312 |
1.500 |
3.010 |
1.830 |
0.120 |
0.800 |
0.865 |
1.320 |
0.250 |
2.875 |
2.250 |
尺寸單位為英寸 |
| 雙動式插銷規格 - 公制 |
常規
插銷
直徑 |
插銷直徑
A |
B
+/-0.13 |
C
最大 |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
最小 |
最大 |
最小 |
最大 |
最小 |
最大 |
最小 |
最大 |
5 |
4.92 |
4.96 |
5.54 |
10.41 |
9.14 |
11.43 |
25.40 |
28.58 |
49.40 |
26.16 |
2.03 |
10.54 |
12.19 |
19.81 |
2.78 |
38.10 |
33.02 |
6 |
5.92 |
5.96 |
6.99 |
10.41 |
9.14 |
11.43 |
25.40 |
28.58 |
49.40 |
26.16 |
2.03 |
10.54 |
12.19 |
19.81 |
2.78 |
38.10 |
33.02 |
8 |
7.92 |
7.96 |
9.42 |
11.68 |
9.91 |
12.83 |
25.40 |
28.58 |
49.40 |
26.16 |
2.03 |
10.54 |
12.19 |
19.81 |
2.78 |
38.10 |
33.02 |
10 |
9.92 |
9.96 |
11.86 |
13.21 |
12.95 |
16.00 |
25.40 |
28.58 |
51.44 |
27.69 |
2.03 |
11.30 |
13.72 |
21.08 |
3.97 |
49.21 |
38.1 |
12 |
11.92 |
11.96 |
14.45 |
13.72 |
12.95 |
16.00 |
25.40 |
28.58 |
51.44 |
27.69 |
2.03 |
11.30 |
13.72 |
21.08 |
3.97 |
49.21 |
38.1 |
16 |
15.92 |
15.96 |
19.00 |
19.18 |
20.45 |
22.10 |
33.32 |
38.10 |
68.33 |
37.21 |
3.04 |
12.95 |
14.61 |
25.40 |
6.35 |
61.91 |
45.97 |
20 |
19.92 |
19.96 |
24.08 |
20.57 |
22.61 |
24.38 |
33.32 |
38.10 |
68.33 |
37.21 |
3.04 |
13.46 |
15.11 |
25.40 |
6.35 |
61.91 |
45.97 |
25 |
24.92 |
24.96 |
30.94 |
28.83 |
30.48 |
32.51 |
33.32 |
38.10 |
76.45 |
46.48 |
3.04 |
20.32 |
21.97 |
33.53 |
6.35 |
71.45 |
57.15 |
尺寸單位為毫米 |
