| 美國杰根斯質量標準 |
| 傳統直拉型和傳統側拉型 |
| 旋轉吊環 |
承重組件
- 所有材料皆為美國制造經鑒定合格的合金鋼.
- 所有部件在制造前都經過精密加工, 并處理掉任何表面缺陷.
- 所有部件都經過熱處理并保證符合制造規格要求.
- 螺栓:
| 英制 |
螺紋等級 |
公制 |
公制螺紋等級 |
| 內六角螺栓級 |
可達到1" 3A |
12.9級 |
Class 6g |
抗拉強度
-180,000 psi - 1/2" 或更小
-170,000 psi - 大于 1/2"
|
高于1" 2A |
抗拉強度
-1220 MPa
- (177,000 psi)
|
|
100% 磁力探傷法檢測
(至 ASTM E709-08 & ASTM A574)
|
|
100% 磁力探傷法檢測
(至 ASTM E709-08 & ASTM A574M )
|
|
- 所有其它承重元件都以ASTM E709-80
和MIL-STD-1916 標準磁力探傷法檢測, 實現零缺陷.
- 螺栓扭矩和安全吊環荷載限制永久性標刻在墊圈上.
- 9001: 2015 認證
|

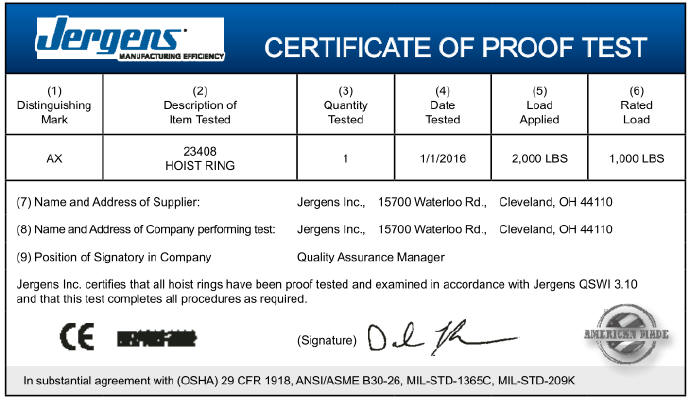

| 驗證測試合格證書附帶在直拉式和側拉式吊環的每個包裝里 |
CERTIFICATE OF PROOF TEST
(1)
Distinguishing
Mark
(2)
Description of
Item Tested
(3)
Quantity
Tested
(4)
Date
Tested
(5)
Load
Applied
(6)
Rated
Load
AX
23408
HOIST RING
1 1/1/2016 2,000 LBS 1,000 LBS
(7) Name and Address of Supplier: Jergens Inc., 15700 Waterloo Rd., Cleveland, OH 44110
(8) Name and Address of Company performing test: Jergens Inc., 15700 Waterloo Rd., Cleveland, OH 44110
(9) Position of Signatory in Company Quality Assurance Manager
Jergens Inc. certifies that all hoist rings have been proof tested and examined in accordance with Jergens QSWI 3.10
and that this test completes all procedures as required.
(Signature)
In substantial agreement with (OSHA) 29 CFR 1918, ANSI/ASME B30-26, MIL-STD-1365C, MIL-STD-209K
|
|
